Reasons to choose us:
● Digital control IGBT inverter.
● EMI filters, reducing pollution on the grid.
● Wide input voltage(±10%) cases, stable cutting.
● Special non - HF, non-contact ignition, success rate about 100%, no interference.
● High speed and quality cutting.
● Applicable to almost all of metal cutting.
TECHNICAL DATA
|
Parameters |
Models |

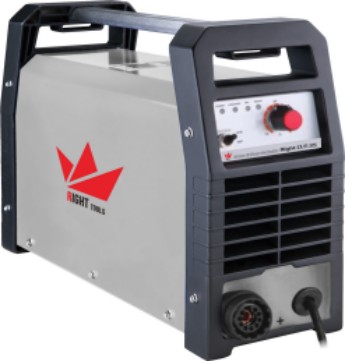

RIGHT CUT 35 |
|
|
Input power |
1×220Vac/230Vac/240Vac±10%,50/60Hz |
||
|
Rated input current(A) |
27.3 |
||
|
Rated input power(KW) |
4.2 |
||
|
Cutting current adjustment range(A) |
15-35 |
||
|
Max no―load voltage(V) |
475 |
||
|
Duty cycle(40℃, 10minutes)% |
30 |
||
|
Carbon steel |
16 |
||
|
|
≤12 |
||
|
Dimensions(mm) |
127*206*440 |
||
|
Protection class |
IP23S |
||
|
Insulation class |
F |
||
|
Net weight(Kg) |
10.3 |
||
|
Equipment features: |
|||
|
With power, heat, over current, over voltage alarm and detection. |
|||
|
Special low cutting pressure prompts to keep cutting quality. |
|||
|
Right alarm for not exact torch installation to guarantee safety. |
|||
|
Standard accessories: |
|||
|
a. Cutting Torch |
|||
|
b. Earth Clamp 300A |
|||
|
c. Earth Cable 16mm2 l=2m |
|||
|
d. Gas pipe l=3m(?) |
|||
|
e. Air Regulator |
|||
